Ruddog Product Description :

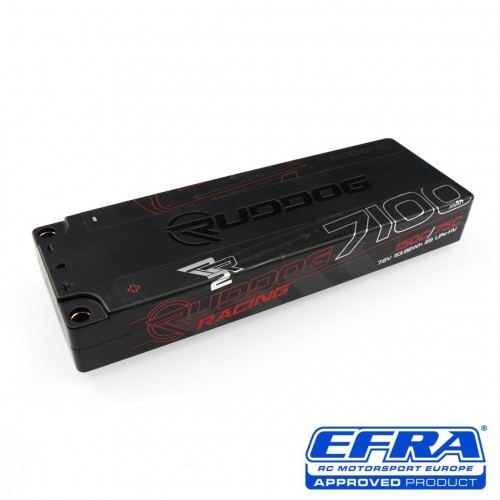

The RUDDOG Racing RR2 7100mAh 150C/75C 7.6V 19.5mm LCG Stick Pack LiPo-HV battery is the

top choice for maximum performance in a slim LCG design. With a capacity of 7100mAh and LiHV voltage,

this RR2 battery offers enormous reserves for demanding racing applications. Developed in close collaboration

with the RUDDOG Racing Team, it impresses with state-of-the-art cell technology and minimal internal resistance.

Joona Haatanen proves that this power makes all the difference on the track, having successfully used these

silicon-graphene cells at top international events. Take your setup to the next level with RUDDOG Racing and redefine your limits.

Key features :

• LiHV power for maximum acceleration and top speed.
• 19.5mm LCG design for an exceptionally low centre of gravity.
• Silicon-graphene technology for minimised internal resistance.
• EFRA and BRCA homologated for official competition use.

Technical specifications :

• Nominal voltage : 7.6V | 2S | LiHV Capacity
• : 7100mAh Discharge rate
• : 75C/150CDimensions
• : 138.5 x 46.95 x 19.5mm
• Weight : 240g
• Connector : 5mm | Balancer : 2mm

---

• Charging

and

storage

information :

We recommend never storing the battery when it is completely discharged or fully charged. Generally, a voltage of

approximately the battery’s nominal voltage is recommended for storage. Furthermore, the batteries should be used

at regular intervals or at least undergo a discharge-charge cycle. Batteries should not be exposed to direct sunlight

during storage or charging to avoid additional heat build-up (e.g. in a car boot in summer). We recommend a

maximum charging current of 1C for long-term durability; a higher charging rate significantly reduces the service life.
