Ultra low profile LiHV stick pack for maximum precision and stability

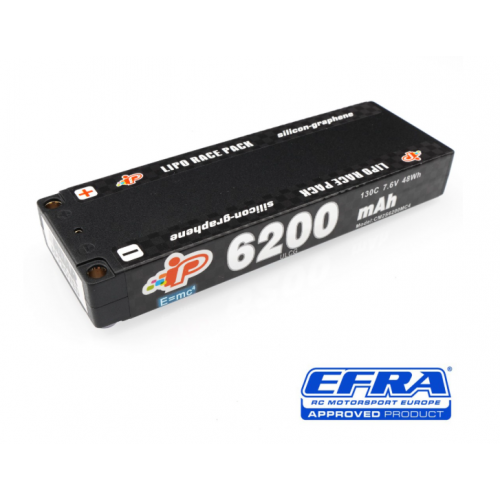

The Intellect CM2S6200MC4 is an ultra flat 2S LiHV ULCG stick pack in the modern 139 mm format.

With a height of just 19.5 mm and a weight of 232 g, the pack significantly lowers the center of gravity

of your touring car. This results in calmer handling, more precise steering response and higher corner

speeds, especially on high grip surfaces.

The 6200 mAh capacity combined with a 130C discharge rating delivers a powerful mix of runtime and punch.

The pack provides a very stable voltage profile throughout the run, supports consistent lap times and gives a

predictable handling feel from the start to the checkered flag. The 5 mm gold plated tube connectors ensure a

robust, low loss connection to the speed controller, even at high current draw.

The 2026 Silicon Graphene LiHV cell technology offers very low internal resistance, reduced heat build up and

improved cycle life when used correctly. As a LiHV pack, the CM2S6200MC4 can be charged up to 4.35 V per

cell with a nominal voltage of 7.6 V. This provides a noticeable performance boost at the beginning of the run

and strong power delivery right to the end. Designed for chassis that support the popular 139 mm ULCG stick

format, this pack offers a well balanced combination of performance, runtime and vehicle balance.

Main features & benefits

• 6200 mAh capacity for solid runtime in a compact ULCG stick format.
• LiHV technology with 7.6 V nominal voltage and charge end voltage up to 4.35 V per cell.
• 130C discharge rating for strong acceleration and a stable voltage curve.
• Only 19.5 mm total height to significantly lower the center of gravity and improve handling.
• Modern 139 x 47 mm stick layout for chassis designed around ULCG stick packs.
• 5 mm gold plated tube connectors for robust, high current capable and low loss connections.
• 2026 Silicon Graphene cell chemistry with very low internal resistance and reduced heat build up.
• Approved for EFRA, BRCA, ROAR and IFMAR competition.

Technical data

Never store the pack fully charged or completely discharged. For optimum service life, we recommend a storage

voltage of about 3.80 V to 3.85 V per cell. Avoid heat and direct sunlight during storage. A cool, dry place is ideal.

A hot car trunk is not a suitable storage location for LiHV packs.

For maximum service life, we recommend charging at 1C. Higher charge currents can significantly reduce

lifespan and performance and can negatively affect cell balance over time.

Safety note: Always use a suitable LiPo safety bag while charging, for example the RUDDOG HD LiPo Charging Bag (180x80x80 mm).
