Features

• Up to 750W continuous output power at 12V
• Up to 62.5A continuous current for demanding high power chargers

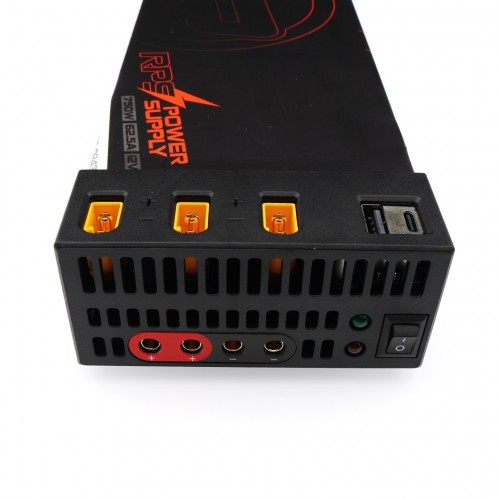

• Three XT60 outputs and two 4 mm banana socket pairs for flexible connections
• USB C (PD) and USB A (QC) ports for fast charging of phones and accessories
• Intelligent, temperature controlled cooling fan for efficient and quiet operation
• Multiple protection circuits for short circuit, overcurrent, overtemperature, overload and overvoltage
• Wide range 100 to 240V AC input for worldwide use
• Compact housing for mobile pit use

Technical data

• Input voltage: AC 100 to 240V, 50/60 Hz
• Maximum input current: up to 10.0A AC
• Output voltage: 12V DC fixed
• Maximum output power: 750W
• Maximum output current: 62.5A
• XT60 outputs: 12V DC, up to 30A total
• 4 mm banana outputs: 12V DC, up to 30A total
• USB C (PD 3.0): 5V / 9V at 3A, 12V at 2.5A, up to 30W
• USB A (QC 2.0): 5V / 9V at 3A, 12V at 2.5A, up to 30W
• Cooling: temperature controlled fan
• Protection: short circuit, overcurrent, overtemperature, overload, overvoltage
• Operating temperature range: approx. −10 to 40 °C
• Dimensions: approx. 227 × 90.2 × 42.4 mm
• Weight: approx. 1050 g
